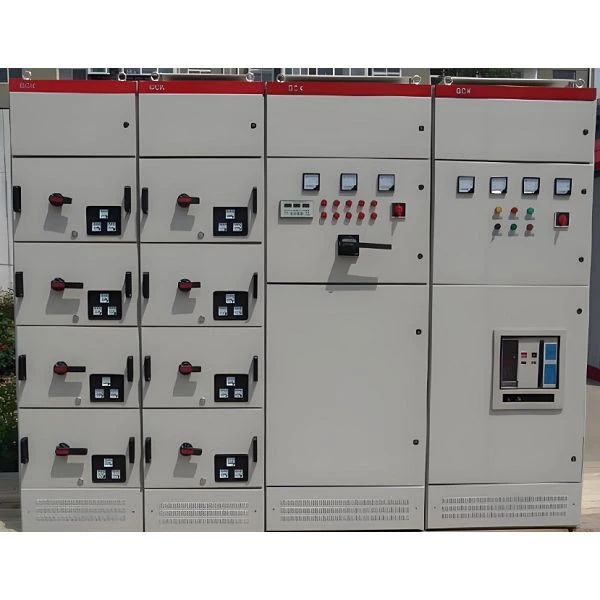

Mea hoʻololi haʻahaʻa -volt

Mea Hana Kikokikona Ha'aha'a ha'aha'a ha'aha'a

Hoʻolālā a hana mākou i nā mea hoʻololi uila haʻahaʻa haʻahaʻa -no nā mea kanu ʻoihana, nā hale kalepa, nā papahana ikehu hou, a me nā mea hana OEM. Mai ka hoʻolālā ʻenekinia a me ka hana ʻana i ka busbar i ka hui ʻana, ka hoʻāʻo maʻamau, a me ka Factory Acceptance Testing (FAT), hāʻawi mākou i nā ʻōnaehana switchgear hilinaʻi i kūkulu ʻia i IEC 61439 a me nā kūlana kūlana honua.

ʻĀpana

Kuhi ʻia i kēia manawa	630 A, 1250 A, 1600 A, 2000 A, 2500 A, 3150 A, 250A,
Voltage koho	220V, 380V, 400V, 6600V, 10000V, 13800V, 15000V,
Mea waiwai	Kila kohu ʻole
Nui	1800
Ka pinepine	50/60 Hz

Nā noi

Nā Kikowaena ʻIkepili a me nā Misiona-Nā Hana Koʻikoʻi:Nā papa hoʻokomo nui, ʻo Tier III/IV pālua -hoʻonohonoho hoʻonohonoho mana hāʻawi mana, hoʻohui i ka hoʻololi hoʻololi ʻakomi (ATS), a me ka nānā ʻana i ka mana kūloko.

ʻOihana a me nā mea kanu hana:ʻO nā papa hāʻawi nui (MDBs), Nā Keena Mana Kaʻa (MCC) no ka hoʻomau ʻana i nā kaʻina hana koʻikoʻi, nā panela kāʻei VFD, a me ka puʻunaue -.

Hiki ke hoʻololi i ka ikehu a me ka mālama ʻana i ka pākaukau (BESS):La PV inverter AC hui hoololi, makani turbine tower boards, a me -kiʻekiʻe o kēia manawa hoʻopaʻa ikehu waihona pūnaewele puni honua-hoʻohui.

ʻAila, Gas a me ka hoʻomaʻemaʻe kemika:ʻO nā mea hoʻololi pahū -pale a me ke arc-, nā MCC hana koʻikoʻi no nā kaiapuni pahū, a me nā papa hoʻopalapala i uhi ʻia i ke kemika-pauda-.

Kalepa a me ka lehulehu:Nā halemai, -nā hale kiaʻi keʻena kiʻekiʻe, nā hale kūʻai kūʻai, nā hale hoʻoheheʻe wai/wai ʻōpala, a me nā pūnaewele hoʻokomo uila.

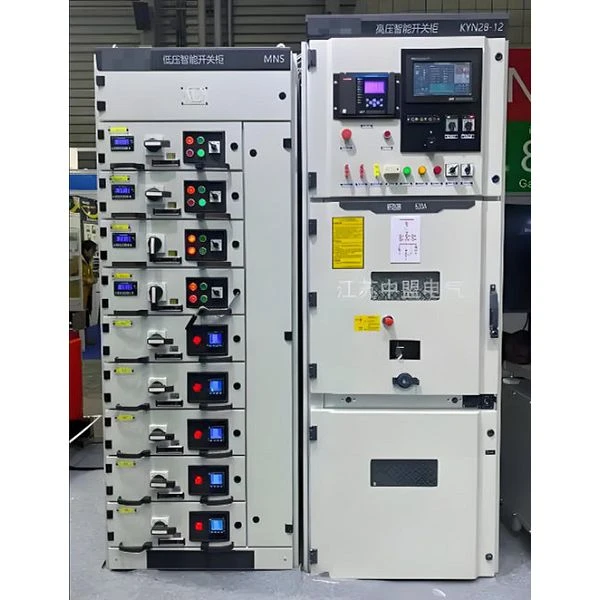

Intelligent Low-Voltage Cabinet (iLV Cabinet)

Nā koho maʻamau

Hoʻokaʻawale Kūloko (Ka helu helu):Hiki ke hoʻokaʻawale ʻia i loko mai ka Puka 1 a hiki i ka Puka 4b (ma ka IEC 61439) e hoʻokaʻawale i nā busbars, nā ʻāpana hana, a me nā hopena o waho.

Nā hoʻonohonoho Busbar:Ke komo ʻana o ka busbar ma luna a lalo; keleawe kiʻekiʻe -conductivity copper (pahu, tin-plated, a kala-plated) a i ʻole nā pahu pahu alumini i helu ʻia a hiki i 6300A.

Hoʻolālā a me ke komo ʻana:Hoʻopaʻa, hoʻopili -i, a i ʻole ka huki ʻana (ka huki) kaapuni kaapuni a me ka hoʻonohonoho ʻana o ka bakeke MCC; mua -aʻe a i ʻole ma hope-manaʻo.

Palekana Paʻa:Loko (IP30, IP31, IP42, IP54 / NEMA 1, 12) a me waho -nā pā hōʻoia (IP55, IP65 / NEMA 3R, 4, 4X) me nā koho hoʻokele wela.

Meter & Mana Mana:Ka hoʻohui ʻana i nā mika mana kikohoʻe, nā -manaʻo ikehu hana nui, nā ʻike nānā wela, a me nā ʻīpuka kamaʻilio Modbus/Profibus/IEC 61850.

Nā hiʻohiʻona ʻenehana

Pale ʻAka hewa

Hoʻolālā ʻia me nā hale i hoʻoikaika ʻia a me nā ʻōnaehana pale pale koho e hoʻomaikaʻi i ka palekana o ka mea hoʻohana a hōʻemi i ka pōʻino o nā lako.

Kiekie -Conductivity Busbar System

ʻO nā pahu pahu keleawe a i ʻole aluminika pololei loa e hōʻoia i ka haʻahaʻa haʻahaʻa, ka hāʻawi paʻa ʻana i kēia manawa, a me ka hana lōʻihi - hilinaʻi.

Hoʻokaʻawale Kūloko maʻalahi

Kākoʻo i ka Form 1 a i ka Form 4b configurations e like me IEC 61439 no ka hoʻonui ʻana i ka palekana a me ka mālama maʻalahi.

Nānā Mana Naʻauao

He kūpono me nā mika multifunction, nā relays pale, a me nā kuʻina kamaʻilio e like me Modbus a me IEC 61850 no ka nānā ʻana -manawa maoli.

Hana Hana

01/

Hana ʻia ʻo CNC Busbar:ʻO nā mīkini ʻoki pahi CNC e piʻo, kuʻi, a me nā mīkini ʻako e hāʻawi ana i ka pololei ma lalo o-milimita ma nā pahu pahu keleawe a hiki i ka 12mm x 120mm.

02/

'Okohi Busbar Sleeving:Heat-hu'i paipu a me na lako pa'i piula no ka ho'omākaukau hui 'ana ki'eki'e.

03/

Kaha Hui:He nui-laina uwila a me ka hookui wahi hookuonoono e kākoʻo ana i ka hana like o oi ma 150 -aa haahaa mau kuamo o ka papa uwau o ka mahina.

04/

ʻO ka hana ʻana i ka pā pololei:ʻOki ʻoki laser ± 0.05mm ka hoʻomanawanui) a me ka CNC press brake belding no 2.0mm–3.0mm galvanized steel or aluminum-zinc coated frame structures.

Kaʻina Hana Hana

Kiʻi ʻenekinia a ʻae ʻia:Hoʻokumu CAD o nā kiʻi laina laina hoʻokahi (SLD), ka hoʻolālā keʻena 3D, nā kiʻi kiʻekiʻe, a me nā kiʻi kiʻi no ka hōʻailona ʻana o ka mea kūʻai aku-.

Hana ʻia ka Busbar & Frame:ʻO ka kuʻi ʻana a me ke kuʻi ʻana o CNC i nā ʻaoʻao hoʻolālā a me nā pahu pahu keleawe nui/kahele.

Hui Pūʻali a me nā pā:ʻO ka hoʻopili ʻana i ka mīkini, ka nānā ʻana i ka torque hana, a me ka uhi pauda (80-120 µm mānoanoa).

Mea Hoʻokomo ʻia:Ke kau nei i nā ACBs, MCCBs, contactors, CTs/PTs, a me ka hoʻopili ʻana i nā pahu pahu keleawe nui.

ʻO ka uwea lua a me ka hoʻoheheʻe ʻana:'Oki uea 'akomi, laser -pa'i lima ferruling, a me ka ho'okele 'ana no ka ho'omalu a me ka pale kaapuni.

Ka Mana Mana

Nānā Mea Komo (IQC)

ʻO ka hoʻāʻo ʻana i ka conductivity i nā busbar keleawe e hiki mai ana, ka hōʻoia ʻana i ke ana kila, a me ka nānā ʻana i ka hōʻoia hōʻailona ma nā wahi kaapuni āpau.

I ka -Ka Hana Hana Hana Hana (IPQC)

E nānā ana i ka ʻūhā o ka Busbar bolt me ka hoʻohana ʻana i nā wrenches torque calibrated (i hōʻailona ʻia me ka pena ʻike -tamper), ke kolo a me ka hōʻoia ʻana i ka mamao hoʻomaʻemaʻe (ma ka IEC 61439).

Hooia Uea

100% helu -a-ka hoomau ana o ka uwea kikoo i na kaha kii i aponoia.

ʻO ka hoʻāʻo ʻana o ka hale hana (FAT) a me ka hoʻāʻo maʻamau

ʻO ka hoʻāʻo ʻana o ka mana dielectric:Hoʻohana ʻia ka hoʻāʻo ʻana -hoʻokolo uila kiʻekiʻe ma waena o nā ʻāpana, ʻāpana-a-kūʻokoʻa, a me ka pae-i-honua (maʻamau 2.5kV AC no 1 kekona / 1 minuke).

Ana 'ana kū'ē i ka insulation:1000V DC megohmmeter insulation resistance e nānā ana ma mua a ma hope o nā hoʻokolohua dielectric.

Nānā Mechanical & Interlock:Nā ho'āʻo hana lima o nā mīkini huki huki kaapuni āpau, nā pani puka, nā mea padlocking, a me nā mīkini pani.

Ho'āʻo Uila Hana:ʻO ka hoʻāʻo ʻana i ka hoʻoulu ʻana i ka circuit circuit, ka hoʻohālikelike huakaʻi/kokoke no nā ACB a me nā MCCB, ka hōʻoia ʻana o ka relay pale, a me ka nānā ʻana i ka calibration hōʻike mika.

Palapala Ho'āʻo Hana Hana (FAT):Hāʻawi ʻia ka pūʻolo hōʻike hōʻike piha me ka hoʻouna ʻana, me nā palapala hōʻoia mea hana calibrated.

Nā lawelawe ʻenekinia

Mamua -Kuai 'Enekinia

Manaʻo SLD, ka helu ʻana i ka nui o ka busbar, ka helu pōkole -kaapuni o kēia manawa, a me ka hoʻolālā ʻana o 2D/3D CAD (AutoCAD, SolidWorks, Revit BIM models).

ʻEnekinia Waiwai (VE)

Manaʻo manaʻo noʻonoʻo kumu kūʻai me ka ʻole o ka hoʻohaumia ʻana i ka helu wela, ka hiki ke haki, a i ʻole nā kūlana palekana.

Nānā mamao FAT

He wikiō ola-i hoʻoheheʻe ʻia ʻo Factory Acceptance Testing (FAT) no nā mea kūʻai aku i hiki ʻole ke hana ma-nā kipa hale hana.

Puke palapala

Hāʻawi ʻia nā palapala kikoʻī, me nā manual O&M, e like me -nā kiʻi hoʻolālā i kūkulu ʻia, bila o nā mea waiwai (BOM), ʻano palapala hōʻoia, a me nā hōʻike FAT.

Packaging, hoʻopaʻa a me ka hoʻouna ʻana aku

Hoʻopaʻa hoʻomalu

ʻO ke kiʻi ʻoniʻoni PE me -moisture VCI (Volatile Corrosion Inhibitor) wahī a me -puke desiccant hana kaumaha i waiho ʻia i loko o kēlā me kēia keʻena panel.

Kapili Crate

ʻO nā pahu plywood manuahi ʻole (18mm ka mānoanoa liʻiliʻi) i hoʻoikaika ʻia me ka hoʻopaʻa ʻana o ka lāʻau i loko a me ka hoʻohuhū EPE.

Ke kumu a me ke kikowaena o ka ho'opa'a 'umekaumaha

Hoʻopaʻa pololei ʻia nā ʻauwaʻa o ka papa hoʻololi i nā ʻauwaʻa lāʻau kaumaha a i ʻole nā kumu kila me nā maka hoʻokiʻekiʻe i hoʻoikaika ʻia no ka huki ʻana o ka crane. Hōʻailona maopopo ʻia ke kikowaena o ka ʻumekaumaha ma ka ʻeke waho.

Nā ʻano hoʻouna

FCL (Full Container Load) ma 40ft High Cube a i ʻole Open Top ipu me nā kaula -kaumaha ratchet -lalo.

Nā palapala hōʻoia

Hana ʻia ma lalo o ka ISO 9001 quality management, me ka CQC certification a me nā palapala hōʻoia ʻē aʻe i loaʻa e like me nā koi o ka papahana.

FAQ

Nīnau: He aha nā kūlana e hoʻokō ai kāu mea hoʻololi haʻahaʻa-a me nā papa hoʻololi?

A: Hana ʻia kā mākou mea hoʻololi a hoʻāʻo ʻia e like me IEC 61439 - 1/2, IEC 60947, a me UL 891 / UL 1558 nā alakaʻi hoʻolālā. Hāʻawi mākou i nā palapala hōʻoia pōkole, piʻi wela, a me ka degere o ka palapala hoʻāʻo palekana.

Nīnau: He aha nāʻano o ka hoʻokaʻawale i loko e hiki iāʻoe ke hāʻawi?

A: Hāʻawi mākou i nā ʻano āpau o ka hoʻokaʻawale kūloko mai ka Pepa 1 a hiki i ka Pepa 4b (no ka IEC 61439). Hōʻoia ka Puka 4b i ka hoʻokaʻawale piha ʻana ma waena o nā busbar, nā ʻāpana hana (nā kaapuni kaapuni), a me nā pahu uwea i waho no ka palekana o ka mea hoʻohana i ka wā mālama.

Nīnau: Hiki iā mākou ke kuhikuhi i kā mākou mau hōʻailona makemake no nā ACB, MCCB, a me nā mika?

A: ʻAe. Kūkulu pinepine mākou i nā papa hoʻololi me ka hoʻohana ʻana i nā mea -mea kūʻai mai Schneider Electric, ABB, Siemens, Eaton, a i ʻole LS Electric. Hiki iā mākou ke hoʻopuka i nā ʻāpana e pili ana i kāu kālā i manaʻo ʻia a me ka papa hana hoʻopuka.

Q: Hāʻawi ʻoe i nā hōʻike hōʻike Type Test no kāu hoʻolālā switchgear?

A: ʻAe. Mālama mākou i nā palapala hōʻoia Type Test a me Design Verification palapala no IEC 61439-2, e uhi ana i nā palena piʻi wela, nā waiwai dielectric, hiki ke kū i ke kaʻa pōkole, ka maikaʻi o nā kaapuni pale, a me nā mamao mamao.

Nīnau: Hiki iā ʻoe ke hāʻawi i nā faila 3D BIM a i ʻole STEP no kā mākou hoʻolālā hoʻonohonoho hale?

A: ʻAe. Hāʻawi kā mākou hui ʻenekinia i nā faila 3D STEP, nā hiʻohiʻona Revit BIM, a me nā kiʻi 2D AutoCAD (kiʻekiʻe, hoʻolālā papahele, hoʻokahi -paʻi laina) i ka wā o ka hoʻouna ʻana i ka ʻenekinia no ka hoʻohui pono ʻana i kāu hoʻolālā hale.

Nīnau: Pehea e hoʻāʻo ʻia ai nā ʻāpana huki (drawout) i ka wā FAT?

A: Loaʻa i nā bākeke kaapuni kaʻa a pau a me nā ʻāpana MCC i 100% nā hoʻokolohua mechanical racking (Hoʻohui ʻia, Hoʻāʻo, Hoʻokaʻawale ʻia nā kūlana), ka hōʻoia ʻana i ka hana pani pani, nā loiloi hoʻoponopono plug mana lua, a me ka hoʻāʻo ʻana i ka uila i ka wā FAT.

Ma ke 'ano o kekahi o ka 'oihana ha'aha'a ha'aha'a - mea hana a me ka mea ho'olako ma Kina, kāko'o pū mākou i ka lawelawe ma'amau. E ʻoluʻolu, e ʻoluʻolu e kūʻai aku i nā mea hoʻololi haʻahaʻa haʻahaʻa haʻahaʻa ma ke kumukūʻai ma ʻaneʻi mai kā mākou hale hana. Loaʻa nā huahana maikaʻi a me ke kumu kūʻai haʻahaʻa.
